| Configuration |

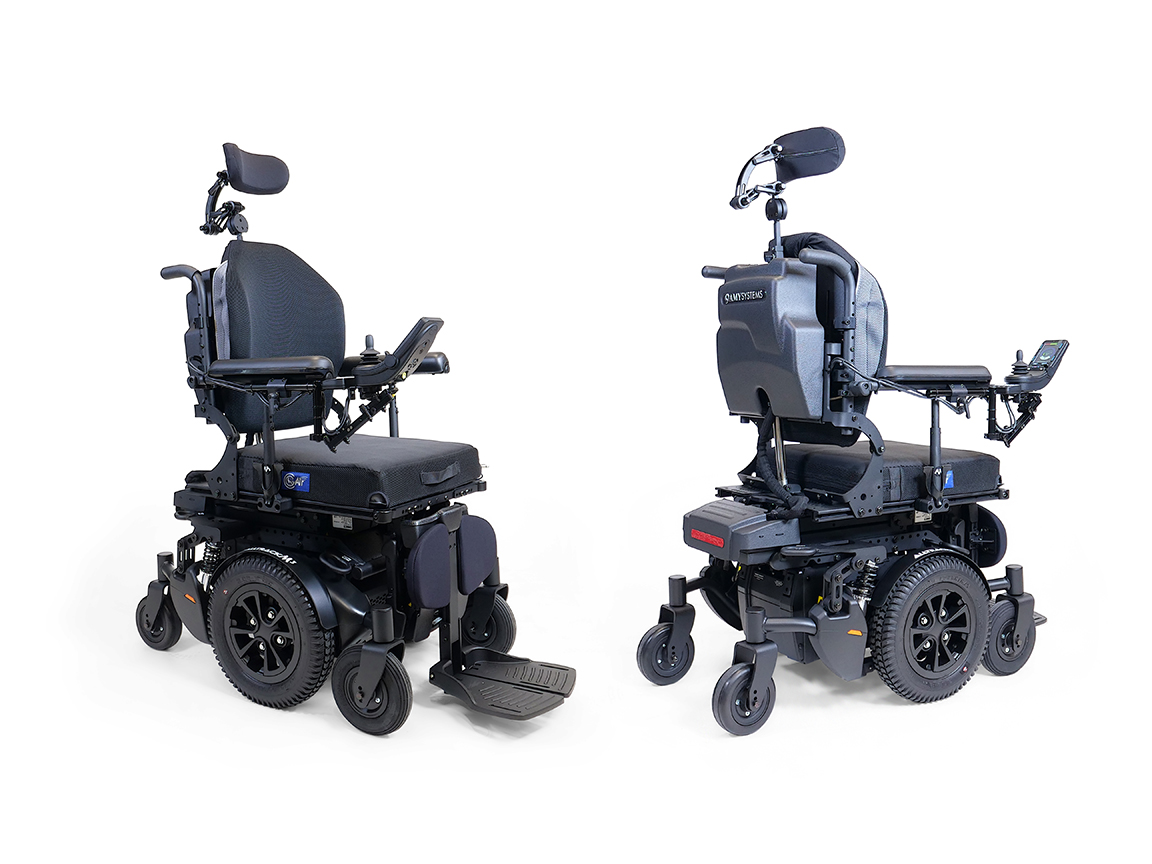

Mid-wheel drive – Heavy-duty (Alltrack M3-HD) |
| HCPCS Codes |
K0850/K0858/K0862 |
| Suspension system |
Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption |
| Ground clearance1 |
3.5” (90 mm) with 14” (355 mm) drive wheels,
2.875” (75 mm) with 12.5” (320 mm) drive wheels |
| Base width2 |
Standard base width 25.375″ (645 mm) with GP 24 batteries |
| Base length2 |
35.125” (890 mm) |
| Base turning radius |
20” (510 mm) |
| Weight capacity |
301-450 lb (136-205 kg)
400 lb (181 kg) with Alta Power Seat elevation option |
| 4-Pole motor options |
6.5 mph (10 km/h) Std
5.4 mph (8.7 km/h) option |
| Transit option |
4-point tie-down attachment points compliant with ISO 7176-19 |
| Battery types |
Two 12 V, deep cycle Gel cell Group 24 (70 Ah) |
| Battery charger |
8 A, off board |
| Electronics |
VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A) |
| Assistive driving package |
Available with Smart-Track technology |
| Specialty controls |
Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems |
| Seat width range |
Adjustable from 17” to 26” (430 mm to 660 mm) wide |
Power seating options
and HCPCS codes³ |
HD Power Tilt (E1002),
HD Power Recline with Mechanical Shear Reduction (MSR) (E1004),
Combination HD Power Tilt and HD Recline with MSR (E1007),
HD Center Mount Elevating & Articulating Foot Platform (E1012),
HD Independent Power Elevating & Articulating Legrests (E1010),
HD Alta Power Seat Elevation (E2298) |
Seat to floor height range
(HD Tilt) |
15.5” to 19.5” (395 mm to 495 mm) |
Seat to floor height range
(HD Seat Elevate) |
17” to 20″ (430 mm to 510 mm) |
Seat to floor height range
(Tilt AND HD Seat Elevate) |
18.5” or 19.5” (470 mm or 495 mm) |
| Component weights4 |
Standard base width 25.375″ (645 mm): 133 lb (60 kg)
Batteries: Group 24: 2 x 54 lb (24.5 kg) |
| Drive wheel diameter |
12.5” or 14” (320 mm or 355 mm) |
| Caster wheel diameter |
6” or 8” (150 mm or 205 mm) |
