F3 Corpus Power Wheelchair

provided during consultation.

This product requires a consultation by one of our qualified health consultants before purchasing.

Small footprint, big impact

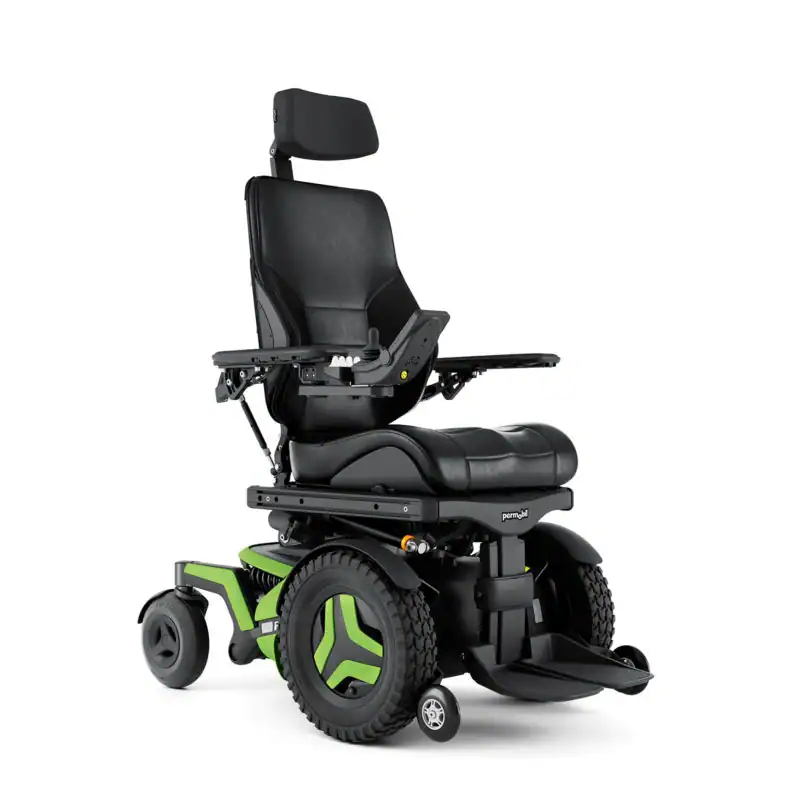

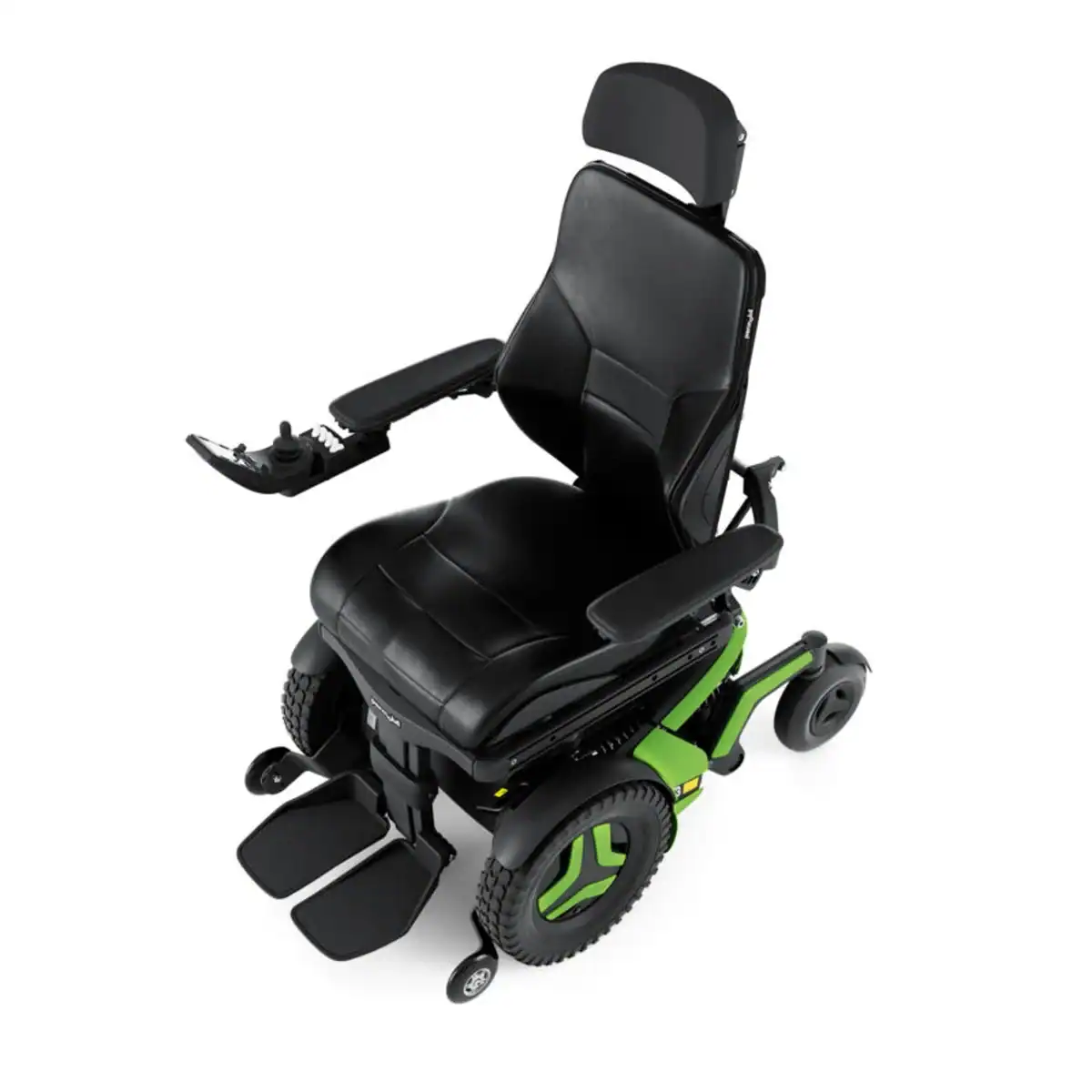

The F3 Corpus is a compact, front-wheel-drive power wheelchair designed for tight spaces and smooth maneuverability. With optimized weight distribution, a low center of gravity, and fully adjustable ComfortRide suspension, it delivers stability on inclines and declines. Featuring Permobil’s advanced Corpus Seating System, it offers 12” ActiveHeight and up to 30º ActiveReach forward tilt for enhanced functionality. Now supporting users up to 330 lbs., the F3 Corpus combines agility with performance.

All online sales are final.

Comfort is King
Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with Corpus Ergo Seat cushion with redesigned pelvic well and new Corpus Ergo backrest cushions with dual density foam. New Stretch-Air cover option is a breathable, machine washable fabric with a low moisture vapor transfer.
Compact Stability
The F3 Corpus offers the smallest footprint of the F-series front wheel drive power wheelchairs. Its compact size and agility allows users to easily maneuver in and out of tight spaces.
Make a Statement
New high power LED head lights are twice as bright, making it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting you should be prepared to turn a few heads in your new F-Series.

Power Platform

Programming Simplified with QuickConfig

Programming changes are faster and more intuitive with QuickConfig, the new wireless programming app for Permobil wheelchairs equipped with Power Platform. Designed with clinicians and equipment providers in mind, in-app visuals ease customization of standing sequences, memory positions, and drive performance. The result? Wheelchair setup has never been easier.

The Corpus® Seating System

Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with improved Ergo seat and backrest cushions. Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.

Maximum User Weight
330 lb
Maximum Speed
6 mph, 5 mph without anti-tips
Minimal Seat Width
17 ”
Maximum Seat Width
23 ”
Minimal Seat Depth
14 ”
Maximal Seat Depth
22 ”
Driving Range
16 km
Alternate Driving Range
20 km
Base Width
24
Base Length
36″ & 40″
Minimum Turning Radius
26.5 ”
Ground Clearance
3 ”
Drive Electronics
R-net 120A
Battery Type
Group 24 Gel, Group 34 Gel
Seat To Floor Height
17.5″, 18.5″, 19.5″

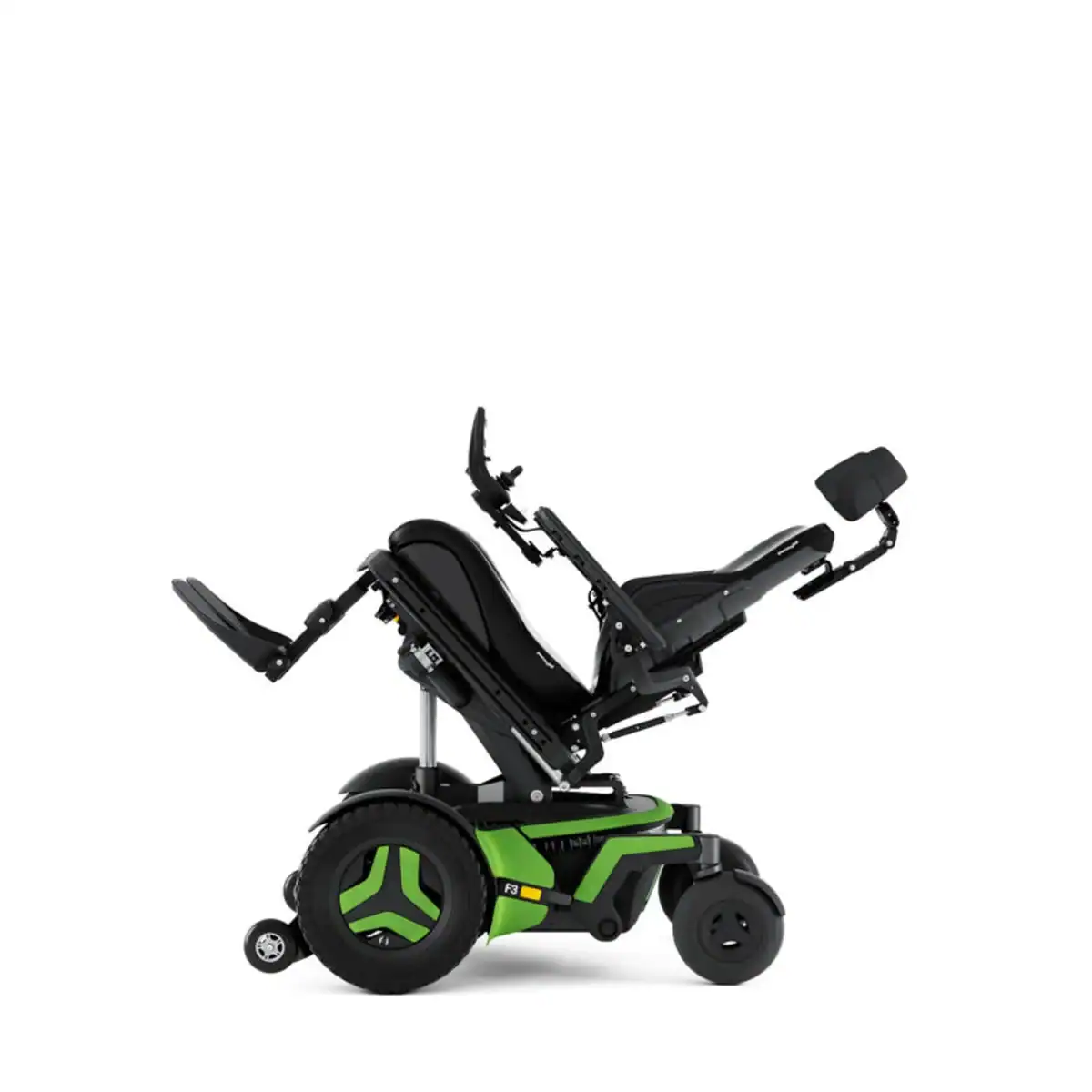

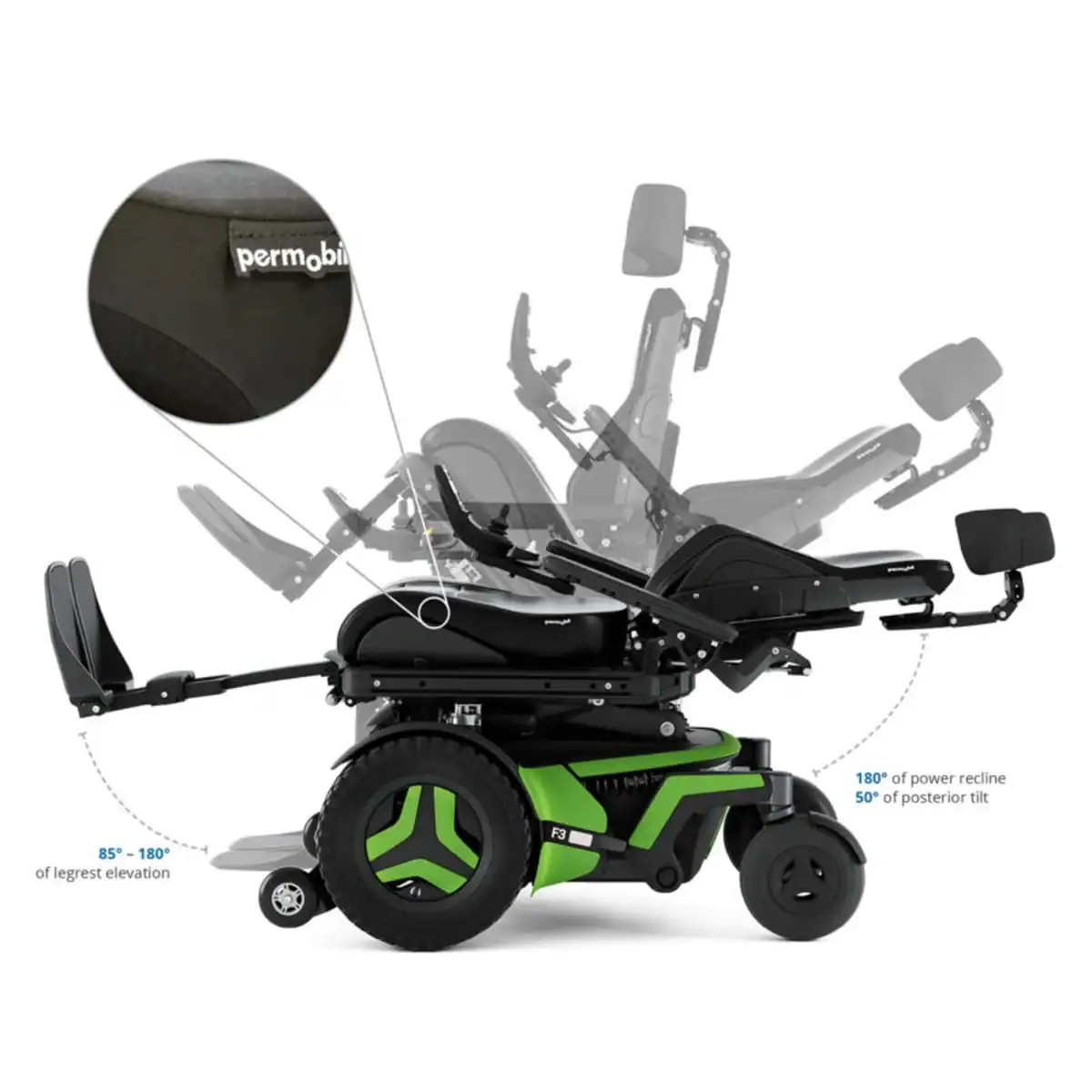

Power Tilt Options
0° – 50° Posterior and 5º, 10°, 20° & 30° Anterior

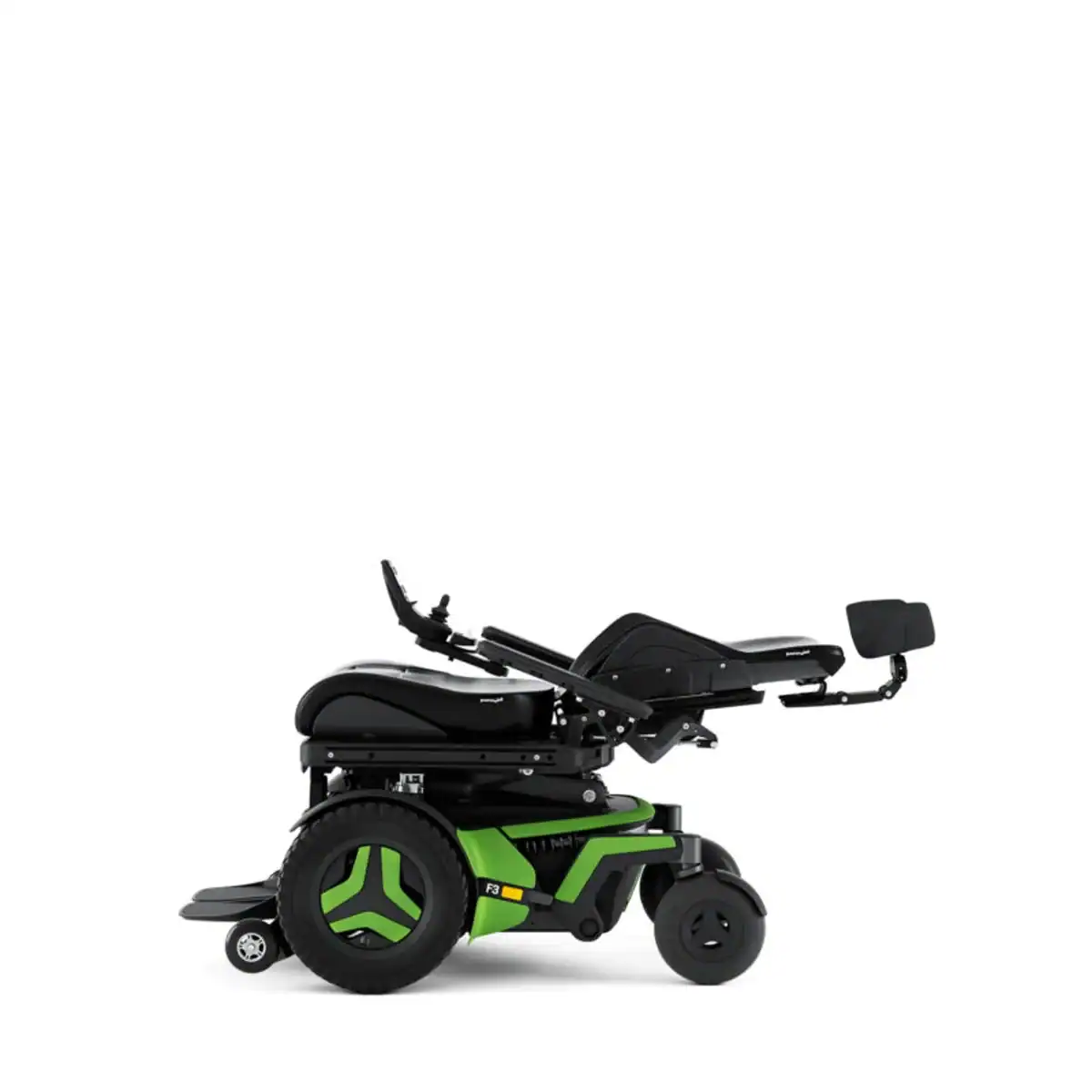

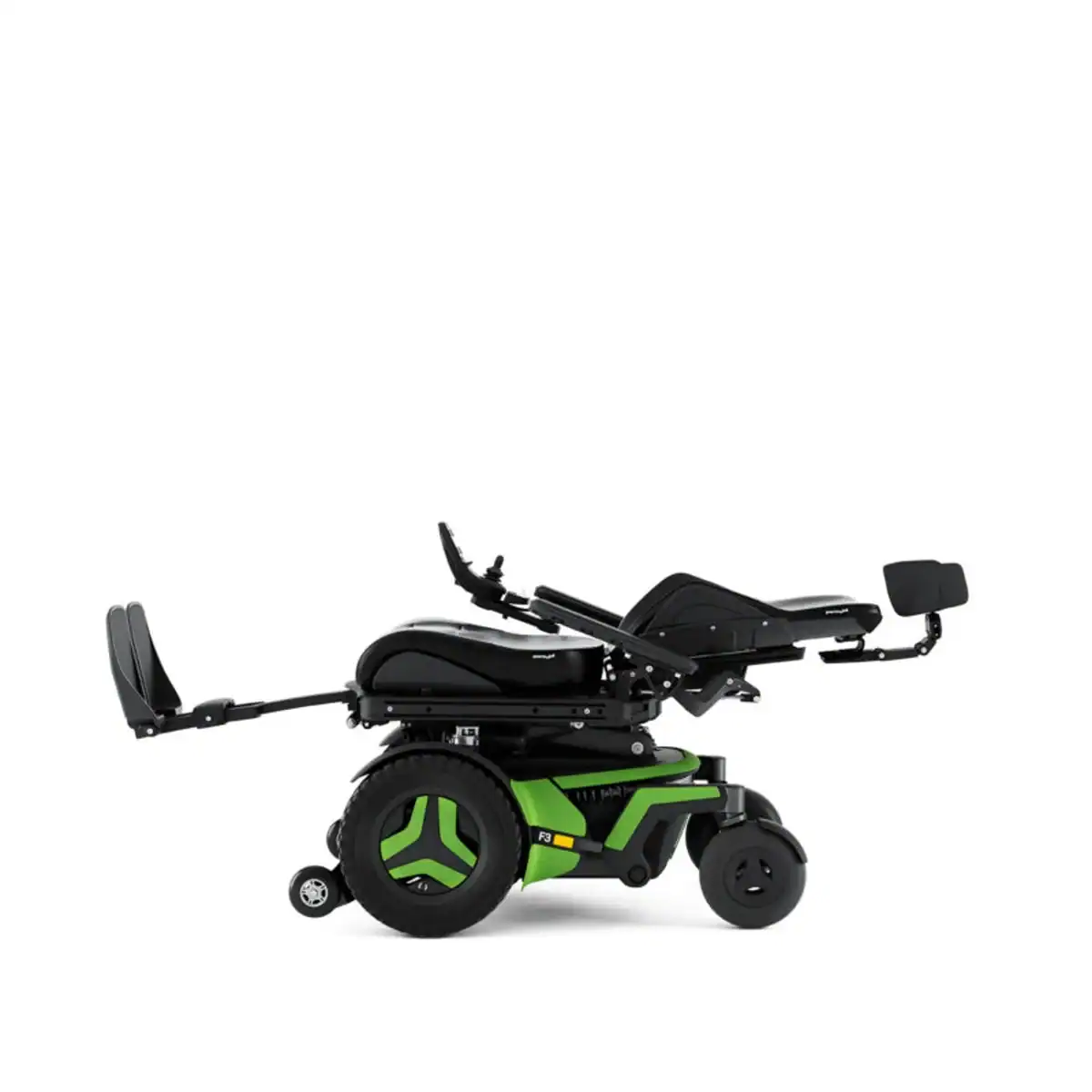

Recline Options
85º-120° (manual), 85º-180° (power)

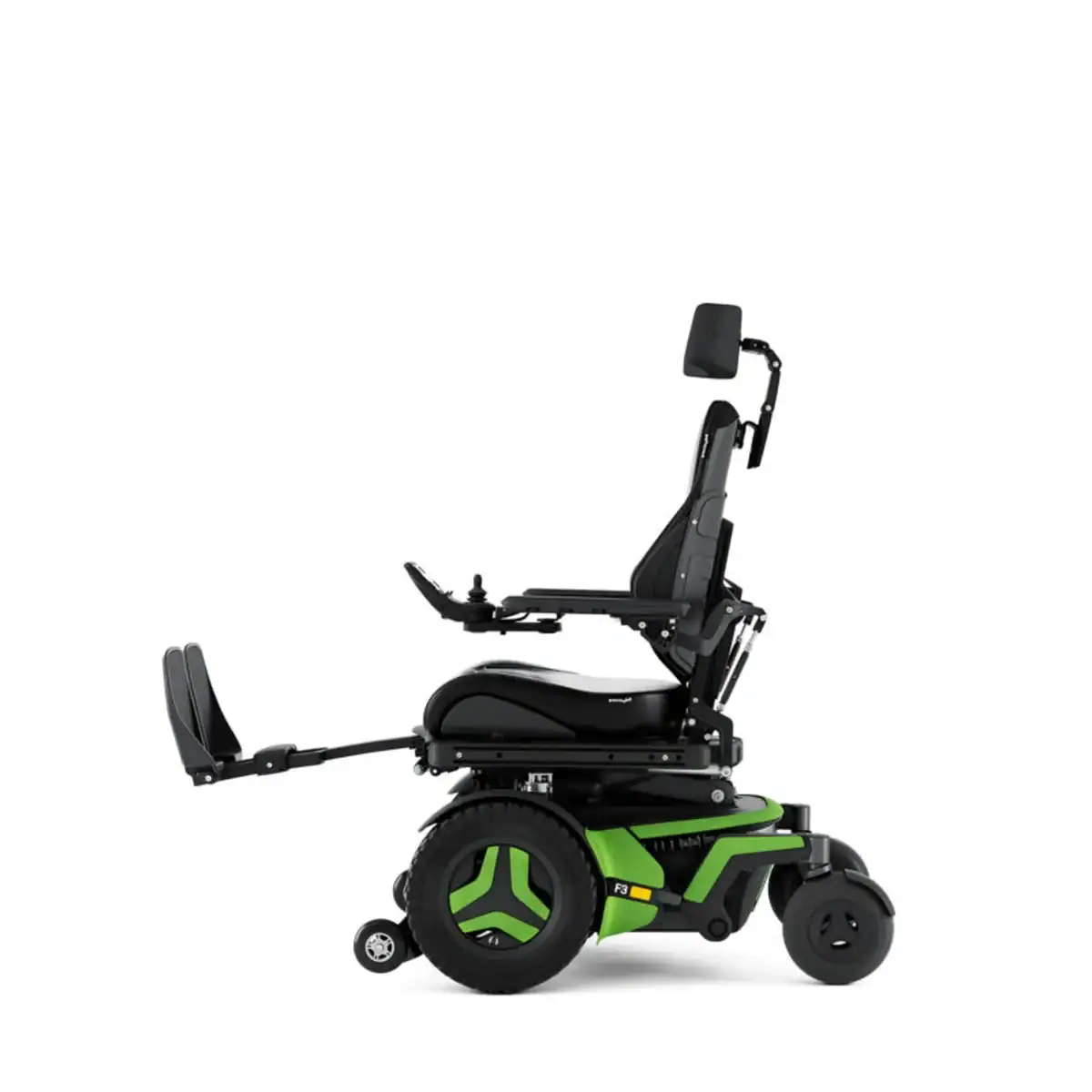

Legrest Elevation
85° – 170°
Armrest Pad Lengths
10″, 13″, 16″ & 18″
Backrest Heights
20″, 23″ – 28″ (by 1″ incr.)

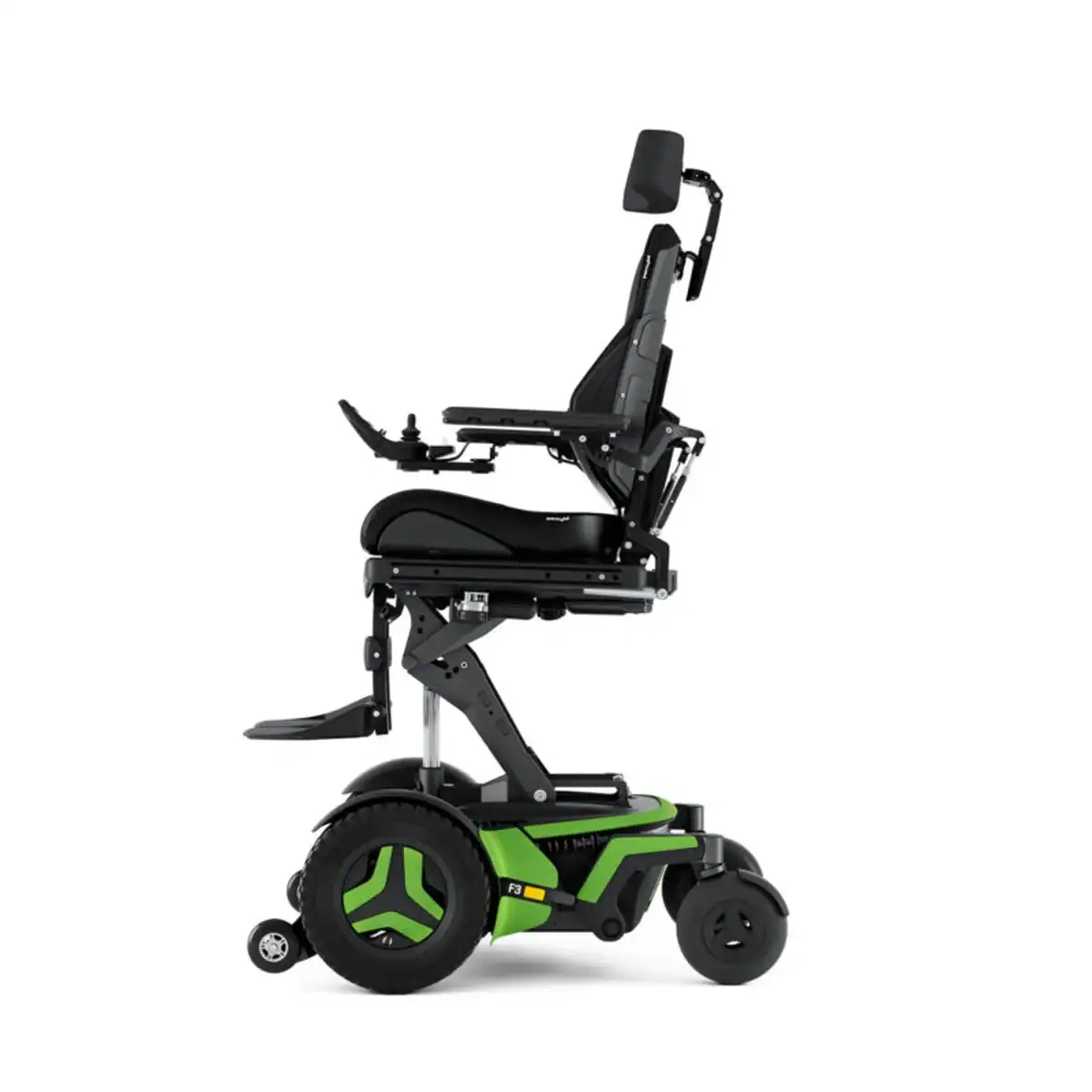

Optional Seat Elevator
12
Weight Including Batteries
386
User Manual - Version 2
User Manual - Version 3
Product Brochure
Positioning Brochure
