variation dependent

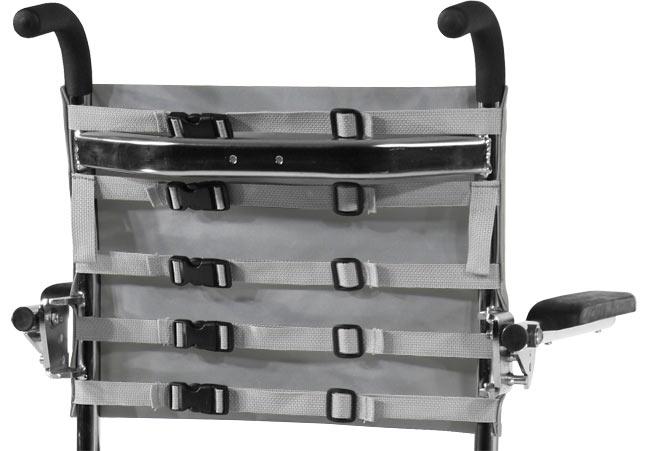

The Raz-AP mobile shower commode chair comes standard with 4” of height adjustment, an adjustable-tension fabric backrest, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame is designed for easy side and front access by the user or attendant.

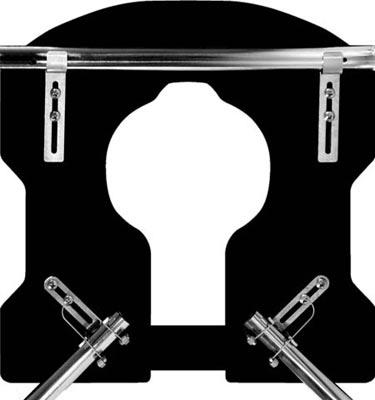

Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Raz-AP is a true prescriber-friendly, mobile shower chair.

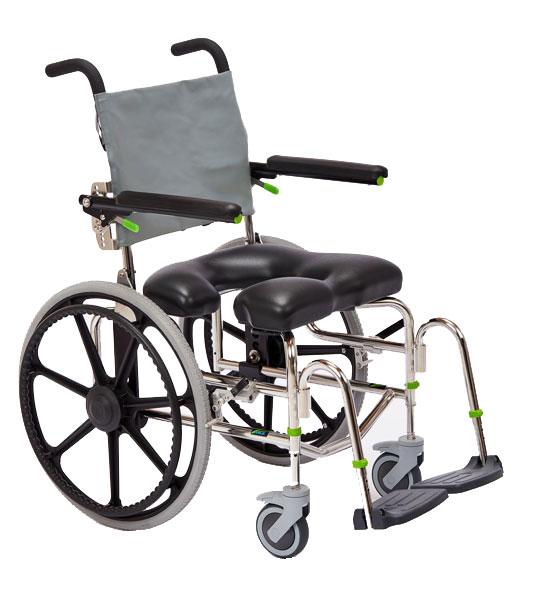

| SPECIFICATION | RAZ-AP | RAZ – SP |
| SEAT WIDTH | 18″ | 18″ |
| SEAT DEPTH | 16″ or 19″ | 16″ or 19″ |
| SEAT ADJUSTMENT | Up to 2″ (fore/aft) | Up to 2″ (fore/aft) |
| SEAT HEIGHT (front seat to floor) | 19.5″ – 23.5″ | 19.5″- 21.5″, 23.5″(22″whl) 19.5″ – 22.5″ (24″ whl) |
| CLEARANCE HEIGHT (under seat) | 14.8″ – 18.8″ w/ pan bracket. 16″ – 20″ w/o pan bracket | 14.8″ – 18.8″ w/ pan bracket and 22″ whl 16″ – 20″ w/o pan bracket and 22″ whl 14.8″ – 17.8″ w/ pan bracket and 24″ whl 16″ – 19″ w/o pan bracket and 24″ whl. |

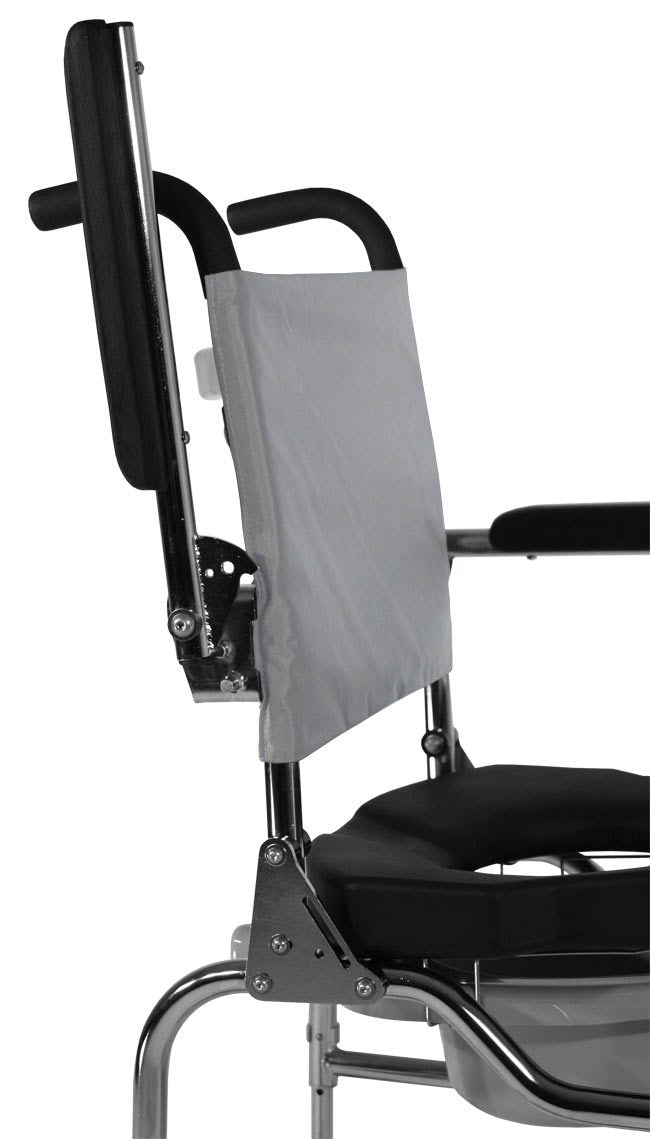

| BACK TYPE w/ Adj. Ht/Angle, Flip-Up Armrests | Adjusta-Back 17″ back ht.(Z510C) 20″ back ht.(Z515C) | Adjusta-Back 17″ back ht.(Z510C)20″ back ht.(Z515C) |
| ARMREST HEIGHT | 7″ – 9.5″ (Z510C) 8″ – 10.5″ (Z515C) | 7″ – 9.5″ (Z510C) 8″ – 10.5″ (Z515C) |
| WIDTH BETWEEN ARMRESTS PADS | 18.5″ | 18.5″ |
| LATERAL SUPPORT(adjustment range) | 1.2″ – 2.2″ offset 2″ vertical 1″ fore/aft ? 5° pad angle | 1.2″ – 2.5″ offset 2″ vertical 1″ fore/aft +- 5° pad angle |

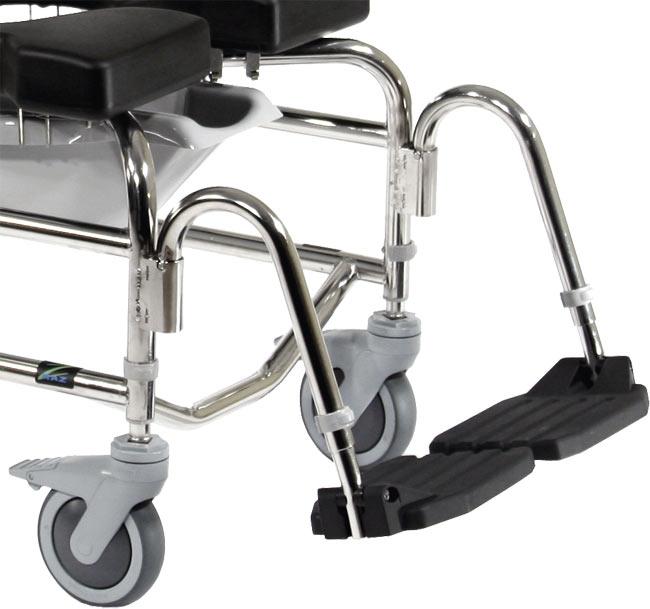

| FOOTREST ADJUSTMENT (from seat to footplate) | 16″- 20.5″(Z705) 18″-22.5″ (Z707) |
16″- 20.5″ (Z705) 18″-22.5″ (Z707) |

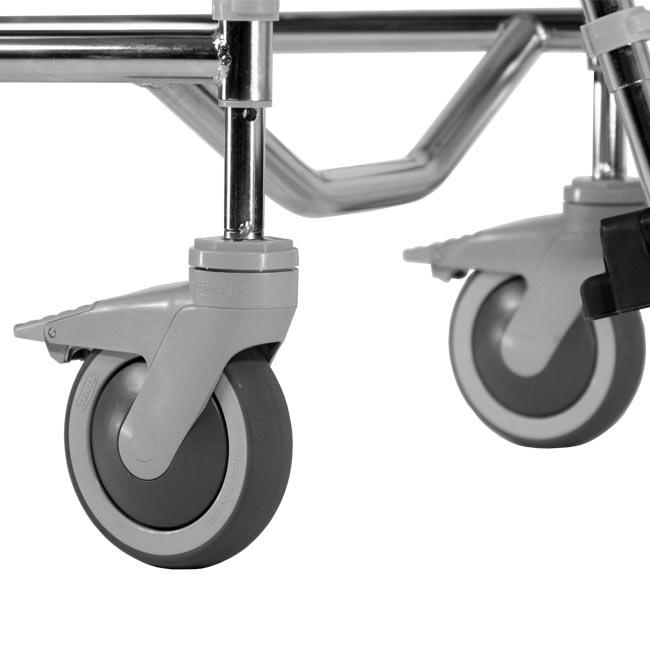

| CASTER TYPE AND SIZE | Four dual-locking 5″ casters | Two dual-locking 5″ front casters |
| REAR WHEEL SIZE (treaded TPE tires) | N/A – See Above | 22″ standard 24″ optional |
| OVERALL WIDTH | 23″ std. arm pad 25.5″ (Z715) | 26″ (outside hand rim) |
| OVERALL LENGTH w/ FOOTRESTS | 40.2″ | 40.3″ – 43.8″ (22″ wheel) 41.1″ – 44.6″ (24″ wheel) |
| OVERALL LENGTH w/o FOOTRESTS | 28.6″ | 28.7″ – 32.2″ (22″ wheel) 29.5″ – 33″ (24″wheel) |
| WEIGHT CAPACITY | 300lbs | 300lbs |
| PRODUCT WEIGHT | 38lbs | 47lbs |
| FRAME MATERIAL & HARDWARE | Stainless steel | Stainless steel |
